formatos condicionales minimo y maximo en un rango

Mensaje por aitorsol » 24 Oct 2018 11:30

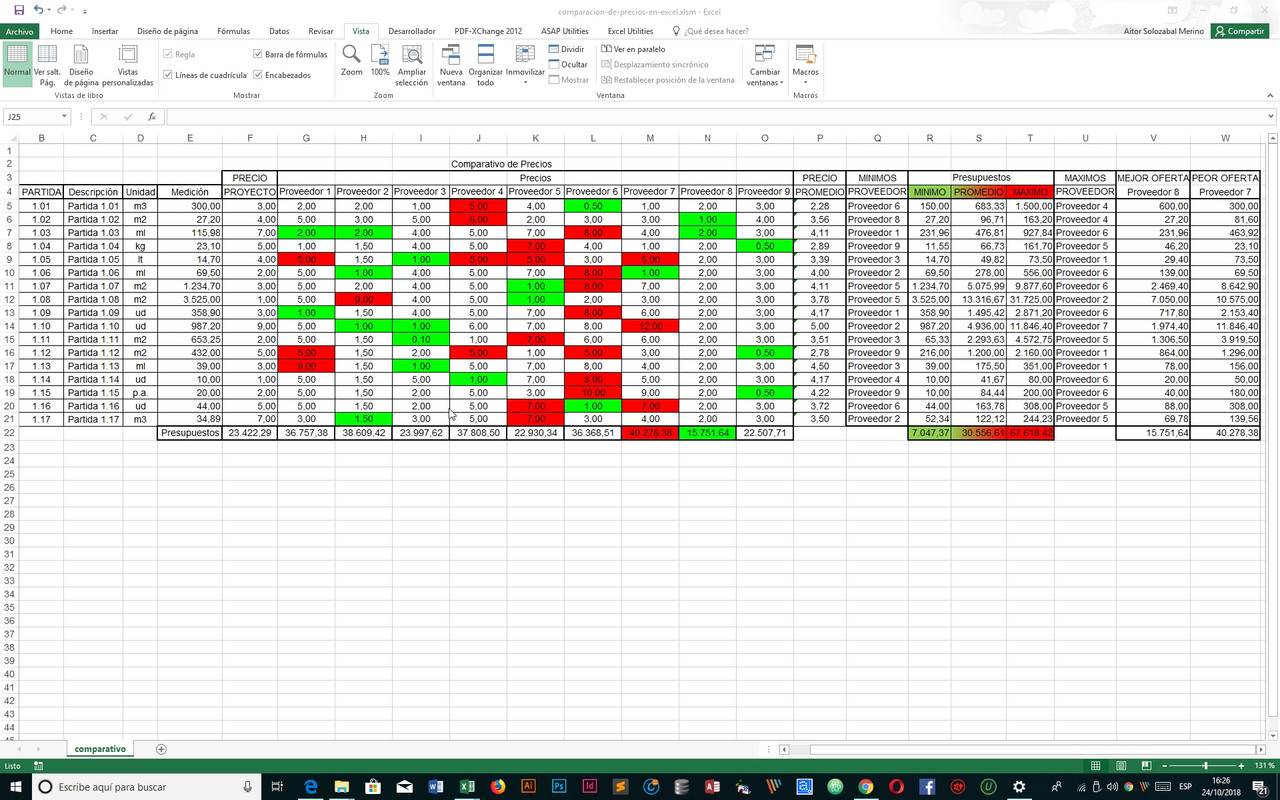

Macro VBA para establecer el formato condicional para mínimo valor y máximo valor por fila en un rango dado por código o seleccionado por el usuario según el ejemplo que se adjunta.

Imagen

Código: Seleccionar todo

Option Explicit
Sub ConditionalFormatMinMaxValuesInARow(Optional r As Variant)
          ' ----------------------------------------------------------------
          ' Procedure : ConditionalFormatMinMaxValuesInARow
          ' Purpose   : Setup the conditional formating of the selected cells with the formulas to Max and Minimum values in a row
          ' Parameter : optional R (Variant) is the Range of the selected cells by code (type range or type string)
          '             the default value if it is missing or not is valid is the user selection
          ' usage     : ConditionalFormatMinMaxValuesInARow("$C3:$T15")
          ' Author    : Aitor Solozabal Merino - email:aitorsolozabal@gmail.com
          ' Date      : 19/09/2018
          ' ----------------------------------------------------------------

10        On Error GoTo ConditionalFormatMinMaxValuesInARow_Error
          Dim Rango As Range
          'check if an argument has been sent
20        If Not IsMissing(r) Then
              'there is an argument sent
              'check type of the argument
30            If TypeOf r Is Range Then
                  'It's a range
40                Set Rango = r
50            Else
                  'It's not a range
60                If TypeName(r) = "String" Then
                      'It's a string
70                    If Len(r) > 4 Then
                          'is not empty and has 5 characters as minimum (A1:B1)
                          'then choose string with the address specified as an argument
80                        Set Rango = Range(r)
90                    Else
                          'it is empty or not valid then choose user selection
100                       Set Rango = Range(Selection.Address)
110                   End If
120               Else
                      'the argument is diferent from a string and from a range and/or is not valid
                      'it is like empty and then choose user selection
130                   Set Rango = Range(Selection.Address)
140               End If
150           End If
160       Else
              'it is missing the argument then choose user selection
170           Set Rango = Range(Selection.Address)
180       End If
190       If IsValidAddress(Rango.Address) Then
200           Rango.Select
210           With Selection
                  'Delete any previous conditional formatting
220               .FormatConditions.Delete
                  '============================================ MAX VALUE
                  'add conditional formatting MAX to selected cells
230               .FormatConditions.Add Type:=xlExpression, Formula1:="=" _
                      & Selection.Cells(1).Address(False, False) _
                      & "=MAX(" & Rango.Rows(1).Address(False, True) & ")"
                  'Assigning red color for the conditional formatting MAX
240               .FormatConditions(1).Interior.ColorIndex = 3
250               .FormatConditions(Selection.FormatConditions.Count).SetFirstPriority
260               .FormatConditions(1).StopIfTrue = False
                  '============================================ MIN VALUE
                  'add conditional formatting MIN to selected cells
270               .FormatConditions.Add Type:=xlExpression, Formula1:="=" _
                      & Selection.Cells(1).Address(False, False) _
                      & "=MIN(" & Rango.Rows(1).Address(False, True) & ")"
                  'Assigning green color for the conditional formatting MIN
280               .FormatConditions(2).Interior.ColorIndex = 4
290               .FormatConditions(Selection.FormatConditions.Count).SetFirstPriority
300               .FormatConditions(2).StopIfTrue = False
310           End With
320       Else
330           MsgBox Rango.Address & " No es un rango valido"
340       End If
350       Range("A1").Select
360       On Error GoTo 0
370       Exit Sub
ConditionalFormatMinMaxValuesInARow_Error:
380       MsgBox "Error " & Err.Number & " (" & Err.Description & ") in Sub ConditionalFormatMinMaxValuesInARow, line " & Erl & "."
End Sub
Function IsValidAddress(strAddress As String) As Boolean
10        On Error GoTo IsValidAddress_Error
          Dim r As Range
20        Set r = Worksheets(1).Range(strAddress)
30        If Not r Is Nothing Then IsValidAddress = True
40        On Error GoTo 0
50        Exit Function
IsValidAddress_Error:
60        MsgBox "Error " & Err.Number & " (" & Err.Description & ") in procedure IsValidAddress, line " & Erl & "."
End Function

No tienes los permisos requeridos para ver los archivos adjuntos a este mensaje.
